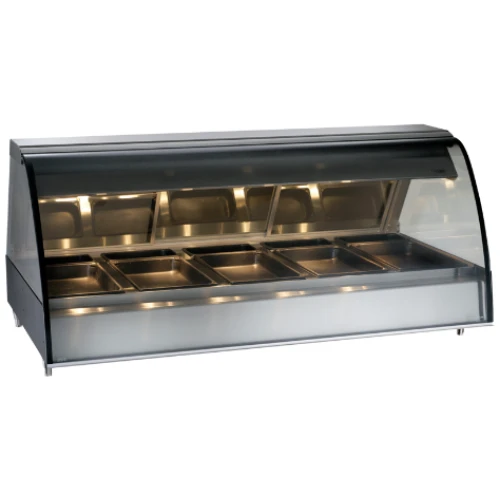

Alto-Shaam TY2-72-BLK 72 Inch Wide Countertop Halo Heat Curved Glass Heated Display Case
Designed for longevity, this Alto-Shaam display case boasts robust 18-gauge, non-magnetic stainless steel construction, delivering both durability and an attractive, modern appearance. The curved design eliminates condensation on the glass, guaranteeing your customers have a clear view of your hot food offerings.
Featuring advanced Halo Heat® technology this innovation provides a precise and uniform heat source that keeps your food fresh and moist for extended periods, all without the need for added water. Whether you’re displaying roasts, pastries, or other hot food items, this unit ensures they remain at their best.
For added convenience, the operator side features removable sliding glass doors, allowing for effortless cleaning, loading, and serving. The display case accommodates a full range of standard (gastronorm) pan sizes, as well as full-size or half-size sheet pans, providing flexibility in food presentation.
Options and accessories are available, some may have an additional charge. Shipping costs dependent on location.
Contact our sales team for more information.
Specifications
Dimensions
External W x D x H: 72″ x 49-5/8″ x 33-7/16″
Well Dimensions (W x L x D): 27-3/16″ x 69-5/16″ x 4-1/2″
Weight
Net Weight: 385 lb
Capacity
Max. Capacity/Volume: 80 lbs (36 kg) / 50 qts (60 L)
Pan Configuration*
GN 1/1 and GN 1/3**: (5) 12″ x 20″ x 2-1/2″ and (5) 12″ x 6″ x 2-1/2″
GN 1/2 and GN 1/3**: (10) 12″ x 10″ x 2-1/2″ and (5) 12″ x 6″ x 2-1/2″
Full-Size Sheet Pans: (3) 18″ x 26″ x 1″
Supply Connections
Electrical
Supply: 120/208-240V/50-60Hz/1P
Plug: NEMA L14-30P (countertop only)
*Pans are not included with display case
**Will also accept 4″ deep pans
Note:
• Display case must be installed level.
• Must not be installed in any area where it may be affected by steam, grease, dripping water, high temperatures, or any other severely adverse conditions.
• Do not install a heated display case near a cold air source such as a freezer, air conditioning vents, or in any area where outside air fluctuation can affect performance.
Features
Key Features
• Halo Heat® controlled, uniform heat source that gently holds and surrounds food
• Holds and displays hot food fresh and moist for hours without adding water
• Expandable system to meet your specific requirements
• Matches profile of leading refrigerated display case
• Constructed of 18-gauge, non-magnetic stainless steel
• Curved glass styling
• Framed end glass with rubber gasket material protects glass edges from chipping and breakage
• Displays hot food without condensation on glass
• Thermostatically controlled heat source radiates from the base of the display case in multiple heat zones
• Tempered glass front encloses the display case and can be lifted to a 90 degree angle for easy cleaning
• Overhead light zones with shatterproof coated bulbs
• Holds a full range of standard (gastronorm) pan sizes, full-size or half-size sheet pans
• Tempered sliding glass doors reflect heat back into the products and mirror the display to enhance merchandising effect
• Removable sliding glass doors on the operator side
• Sliding door tracks have a “clean sweep” cutout allowing for easy cleaning and crumb removal
• Includes one set of 4-inch legs
Optional and Accessories
• Alternate electrical configuration options
• Butting kit to seamlessly connect multiple countertop units
• Left-hand platform scale (customer side)
• Right-hand platform scale (customer side)
• Self-service pan insert 4″ deep
• Sheet pan divider bar package
• Thermostat guard cover plate
• Work shelf with gravy lane
• Stainless steel panel color option
• Black formica system end panel option
• Solar bronze end glass option
• Temperature gauge
• Independent electrical outlet
• Temperature probe
