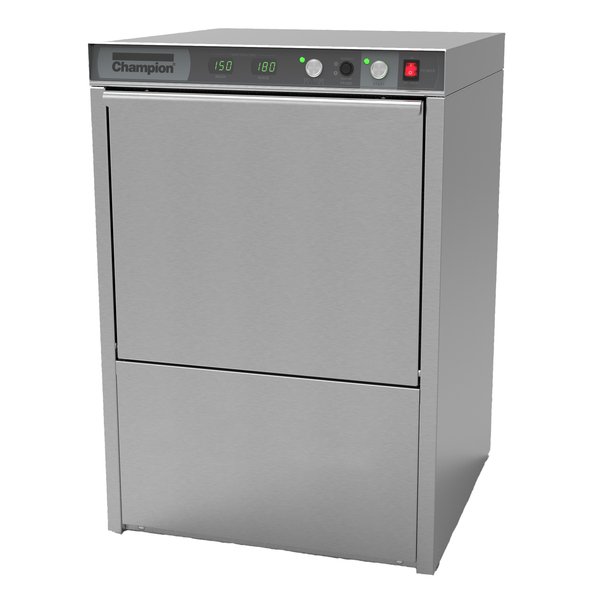

Champion Undercounter High Temperature Dishwasher UH130B
The Champion Undercounter Dishwasher UH130B is ideal for the bar, restaurant and hotel sectors to meet their dishwashing need. It offers a built-in booster heater. For busy bars or restaurants it offers a 141 second total cycle.
To ensure you do not run out there is a rinse sentry. To guarantee cutlery cleanliness it also has a detergent and rinse aid pump, and comes with stainless steel top and side panels. To be sure it is easy to clean it is constructed of stainless steel.
Specifications
Capacity (at 140°F incoming water)
Racks per hr. 25
Cycle time (seconds) 141
Motor horsepower
Wash 1
Water consumption
U.S. Gal./Imperial Gal.
(Max. use) per hr. 38/31.7
U.S. Gal./Imperial Gal.
per rack 1.8/1.5
Temperatures °F/°C
Wash 150/66
Rinse 180/82
Heating
Tank heat, electric, kW 2.0
Electric booster
(kW) required for 70°F/39°C rise) 6
Electric high speed
(kW) booster for 100°F rise) 9
Time cycle in seconds
Wash 90
Rinse 26
Drain/fill 25
Total cycle 141
Standard 20″ x 20″ rack complement
Dish 1
Open 1
Features
Shear Energy – a reduction in energy requirements while maximizing performance.
Multi-Power – included “Multi-Volt” and “Multi-Phase”. Allows for infield conversion to 208-240 volt and/or single to three phase with ease.
Stemsure – soft start to protect glasses and dishes from chipping and breaking
Wash Refresh – Automatically drain the water for the next cycle, ensuring heavily soiled items are always sanitized with new wash water
Rinse Sentry – extends the cycle time to ensure 180°F final rinse
Bulit-in electric booster for 180°F final rinse water
Pumped drain
Door safety switch
Low-water tank heat protection
Detergent and rinse aid pumps
Quiet double-wall construction
15-3/4″ door opening to accept larger wares, including trays
Stainless steel top and side panels
141 second cycle
Wash pump, 1 Hp motor
Fill and dump
Prime switch on control panel
Automatic tank fill
Advanced Digital Temperature Monitoring
